【FEATURES】
NSR’s new generation of AIS EPIRB:
- Meet the latest IMO regulation – IMO MSC.471 (101).
- Built in GNSS receiver and AIS transmitter.
- Creative design for easy operation.

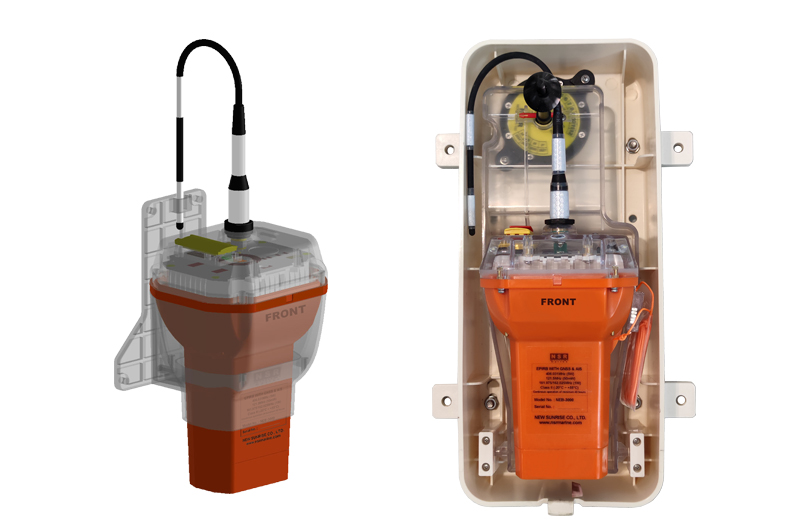

- Two options: Manual bracket or Float-free enclosure.
- Automatic power cut when test completed.
- Multiple protection to avoid false alert.
- Lower power consumption for longer working hours.
- Automatic release device is activated underwater 4 meters.
- Easily coding/reading user data with infrared communication technology.
- 406MHz transmission together with 121MHz.homing & AIS transmitter.
- RLS (return link system) enabled.
- COSPAS-SARSAT type approval.
【SPECIFICATIONS】
General | |
Model: | NEB-3000 |
Case Material: | Special ABS+PC |
Color: | High Visibility Orange |
Watertight: | At a depth of 10m for at least 5 min |
Buoyant: | Yes |
Deployment: | Automatic hydrostatic release or Manual switch control |
Accessories: | Hydrostatic Release Unit Buoyant lanyard Lanyard for hand-free carry |
Physical | |
Weight: | 1.45 kg (Beacon), 1.6 kg (Container) |
Size: | 116.2 (W)×491 (H)×102.4 (D) mm (Beacon), 220(W)×363.4(H)×140.8(D) mm (Container) 123.0 (W) × 133.3 (H) × 118.4 (D) mm (Manual Bracket) |
406 MHz Transmitter | |
Frequency: | 406.031MHz±1kHz |
Output Power: | 5W |
AIS Transmitter | |
Frequency: | AIS1 (161.975 MHz), AIS2 (162.025 MHz) |
Output Power: | 1 W |
121.5 MHz Homer | |
Frequency: | 121.5MHz |
Output Power: | 50mW |
GNSS Receiver | |
Type: | Built-in GNSS antenna |
System Supported: | GPS, BDS, Glonass, Galileo |
Battery | |
Type: | NBT400C |
Storage: | Up to 10 years (see Note) |
Operating: | ≥48hrs. (-20℃) |
Strobe light | |
Type: | LED |
Color: | White |
Flash Rate: | 20/min |
Environment | |
Operating Temperature: | -20℃ ~ +55℃ |
Storage Temperature: | -40℃ ~ +70℃ |
Automatic Release Depth: | 4 meters max (13 feet) |
Note: It's from the date of manufacture. 10 years consist of 1 year of shelf time and 9 years of onboard time. 5-year health check is recommended.
The replacement should be done according to requirements of local authorities, if any.
